High-end quality for Martensite stainless steel outdoor knife

Professional production of the following martensite stainless steel for high-end quality material of outdoor knife.

International GradeChina GradeC
Carbon
Cr
Chromium
Mn
Manganese
Si
Silicon
Mo
Molybdenum
V
Vanadium
Co
Cobalt
S
Sulphur
P
Phosphorus
Ni
Nickel
N
1.4116JXS05-15MoV0.45-0.5514.00-15.00≦1.00≦1.000.50-0.800.10-0.20≦0.030≦0.035
6Cr14JXS06-140.65-0.7013.00-14.00≦1.00≦1.00≦0.030≦0.035
AUS6JXS06-14MoV0.58-0.6513.00-14.00≦1.00≦1.000.10-0.300.10-0.20≦0.030≦0.035
AUS10JXS100.95-1.113.00-14.00≦1.00≦1.000.10-0.300.10-0.20≦0.030≦0.035
AUS10CoJXS10Co0.95-1.113.00-14.00≦1.00≦1.000.20-0.250.10-0.200.15-0.25≦0.030≦0.0350.05-0.12
9Cr13MoVCoJXS09-13Co0.88-0.9513.00-14.00≦0.80≦0.800.10-0.300.10-0.200.15-0.25≦0.030≦0.035
SUS440A7Cr17MoV0.65~0.7016.40~17.100.40~0.80≤1.000.50~0.600.10~0.30≤0.01≤0.02≤0.40
SUS440B8Cr14MoV0.75~0.8013.50~14.500.20~0.80≤0.800.40~0.500.10~0.30≤0.04≤0.03≤0.60
9Cr14MoV0.88~0.9213.50~14.500.20~0.80≤0.800.40~0.500.10~0.30≤0.04≤0.03≤0.60
9Cr14MoV+Co0.88~0.9213.50~14.500.20~0.80≤0.800.40~0.500.10~0.300.20~0.30≤0.04≤0.03≤0.60
SUS440C9Cr18MoV
(SUS440C)
Kitchen knife
0.85~0.9517.00~19.000.20~0.80≤0.801.00~1.300.07~0.12≤0.04≤0.03<0.40
SUS440C9Cr18Mo
(SUS440C)
Hair scissor
0.95~1.1016.00~18.000.30~0.70≤0.800.40~0.70≤0.03≤0.04<0.40
SUS440C or 440F11Cr17
(linear guideway)
0.95~1.216.00~18.00<1.00≤1.00<0.75≤0.025≤0.025<0.60
85Cr18Mo2V0.80~0.9016.50~18.500.90~1.40≤0.802.00~2.500.30~0.60≤0.03≤0.04<0.40
VG10VG100.95~1.0514.50~15.50.30~0.50≤0.800.80~1.200.25~0.351.30~1.80≤0.025≤0.025<0.50
BG-42BG-421.13~1.2014.5~15.50.20~0.600.2~0.43.95~4.11.10~1.20≤0.010
S35VNS35VN1.32~1.4213.70~14.300.40~0.600.40~0.601.95~2.052.90~3.10≤0.025≤0.025≤0.25

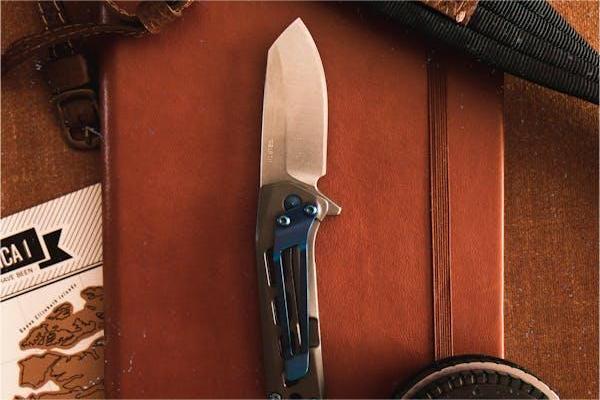

Product application field

In outdoor exploration, survival, and wilderness activities, knives are indispensable tools. Whether hiking, camping, fishing, or hunting, knives play crucial roles in various situations. Here are the diverse application areas of outdoor knives:

  1. Survival Tool: In wilderness survival, knives are essential tools in survival kits. They can be used to build temporary shelters, create tools and weapons, process food, and more. A sturdy, multi-functional survival knife is crucial for handling unforeseen circumstances and overcoming challenges in the wild.

2. Camping Tool: During camping, knives serve as versatile tools for cutting wood, processing food, preparing fuel, and more. For example, cutting firewood to the appropriate size or peeling food may be necessary, making a sharp knife invaluable during camping expeditions.

3. Outdoor Cooking: Knives are indispensable utensils for outdoor cooking, used for slicing, chopping, and preparing ingredients, enhancing the joy of outdoor dining. A lightweight, portable outdoor cooking knife facilitates chefs in handling ingredients with ease, allowing them to enjoy delicious outdoor meals.

4. Emergency Rescue: In emergencies, knives can be used for self-rescue or aiding others. For instance, they can be used to cut ropes, trim bandages, clean wounds, and more. In outdoor adventures, faced with sudden accidents, a reliable knife can be the last line of defense for saving lives.

5. Tool Maintenance: During outdoor activities, knives can also be used for maintaining other tools. For example, sharpening knives with a sharpening stone to maintain their sharpness, or using them to repair damages to other equipment. Thus, a durable knife can serve as a versatile tool in outdoor activities.

Why choose martensitic stainless steel for outdoor knives?



1. Strong Corrosion Resistance: The outdoor environment often exposes the tool to wet, rainy and other conditions, so corrosion resistance is one of the factors that must be considered for outdoor tools. Martensitic stainless steel also has enough alloying elements such as chromium, so that it has good corrosion resistance, can resist corrosion factors such as water, moisture, chemicals, and maintain the surface finish and function of the tool.

2. Excellent Hardness And Wear Resistance: Outdoor tools need to have sufficient hardness and wear resistance to cope with the complex use environment in the field. Martensitic stainless steel usually has a high hardness, so the tool products can maintain the sharpness for a longer time, not easy to dull, wear resistance is relatively strong, can maintain the service life of the tool.

3. Easy Cleaning And Maintenance: Outdoor tools are often exposed to a variety of dirt and impurities, so easy cleaning and maintenance is a very important feature. Martensitic stainless steel surface is smooth, not easy to adhere to dirt, easy to clean and maintain, but also not easy to produce rust or oxidation, to maintain the hygiene and beauty of the tool.

4. Strong Tensile Resistance: Outdoor tools may be subject to greater force and impact, so it is necessary to have good tensile resistance to prevent the deformation or fracture of the tool. The structure of martensitic stainless steel makes it have good tensile resistance, not easy to deformation or fracture, and can maintain the stability and safety of the tool.

5. Excellent Mechanical Properties: Martensitic stainless steel tools have good cutting performance, stable blade strength and elasticity, making the tool more reliable and effective in actual use.

Why is zeicin’s martensitic stainless steel comparable to Japanese martensitic stainless steel?

ZD=ZEICIN PK TAKEFU QUALITY

Metallographic organization comparision

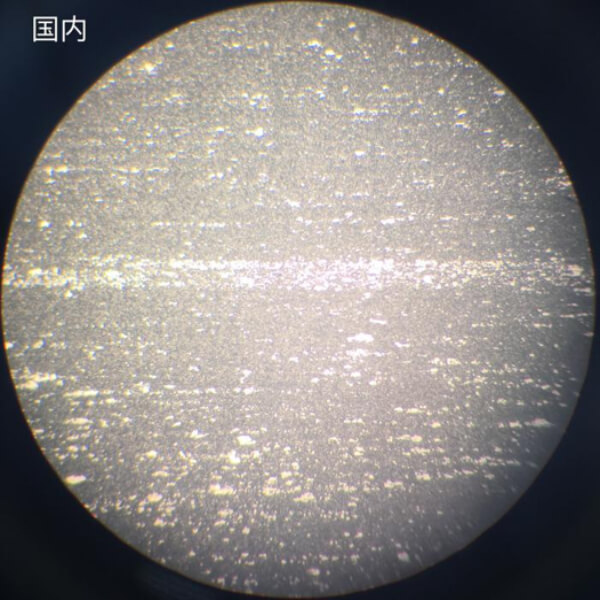

Photo 1 Domestic Industry

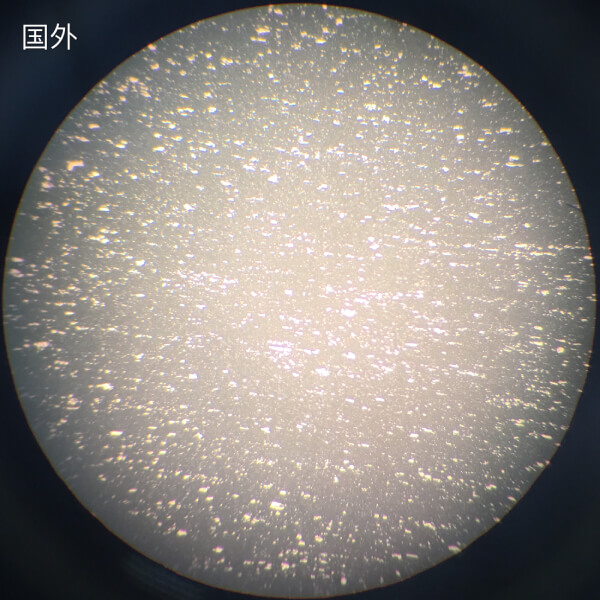

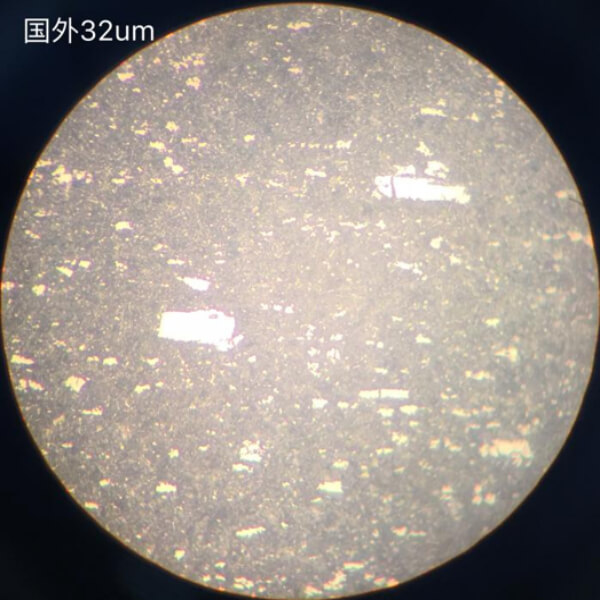

Photo 2 Imported From Abroad

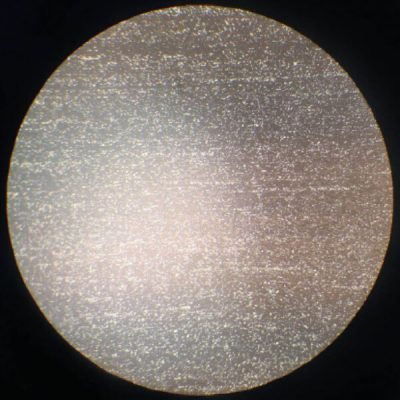

Photo 3 Zeicin

Image description: 9Cr18Mo X100 times carbide analysis.

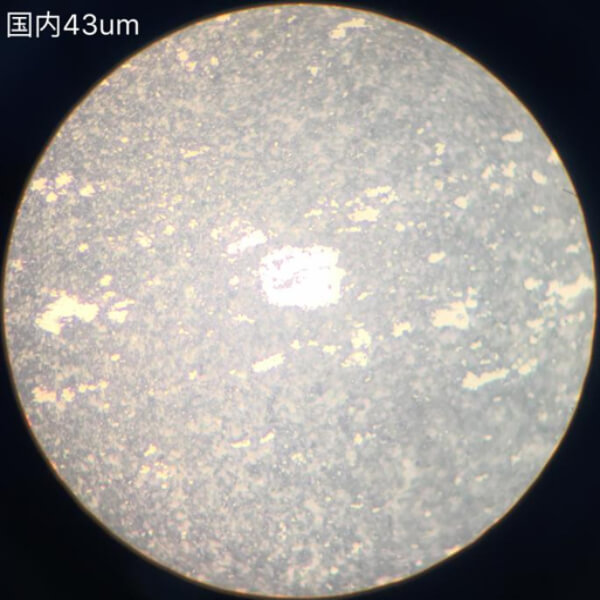

Photo1(Domestic). carbon carbide size Obvious appear big size.

Photo2 (abroad) the carbide distribution is uneven and the individual is large.Reason analysis: during the smelting process, the carbide can not be controlled well. In the late forging, although the forging ratio increases, it fails to make up for the defects of the smelting.

Photo3(ZhengDa=Zeicin) the modification of three technological processes of 1)EAF+LF+VD, 2) Special innovation smelting process of RS ESR, 3) transformation forging of the 9Cr18Mo , So that keep obviously better than the imported ones.The carbide is small and uniform.

Photo 1 Domestic Industry

Photo 2 Imported From Abroad

Photo 3 Zeicin

Image description: 9Cr18Mo X500 times carbide analysis

Photo1(domestic), the carbide individual is obviously large, the processing will appear the phenomenon of detachment.

Photo2(abroad),The carbides are superior to domestic ones, but there are more angular carbide, and cracks and stress concentrations are easy to occur in use, leading to early failure.

Photo3(ZhengDa=Zeicin) the modification of 9Cr18Mo in the process of smelting and forging, the level of carbide is obviously superior to the imports.

Photo 1 Domestic Industry

Photo 2 Imported From Abroad

Photo 3 Zeicin

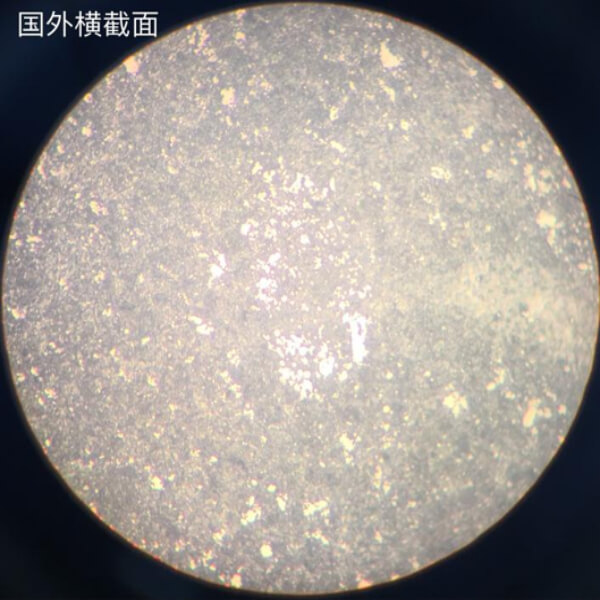

Image description: 9Cr18Mo X100 times cross section carbide analysis.

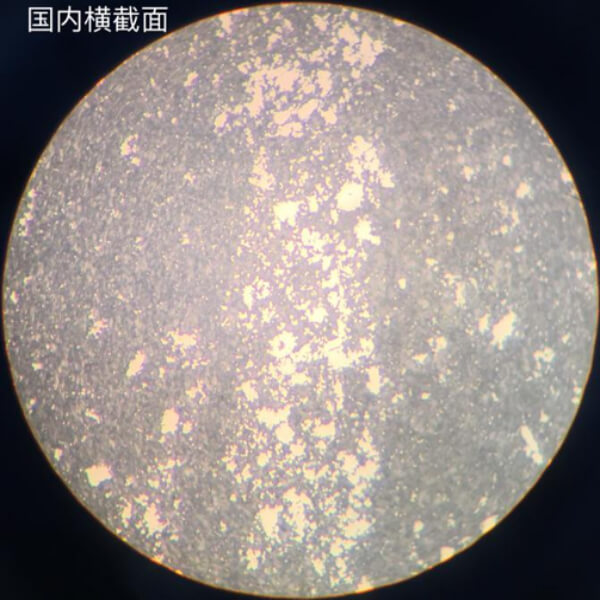

Photo1(domestic), Zonal carbides are obvious, the carbide particles are obviously larger than the longitudinal ones, cause analysis: no make modified forging, Just make rolling directly.

Photo2(abroad) the distribution of carbides is not uniform and the individual is large. Reason analysis: during the smelting process, the carbide can not be controlled well. In the late forging, although the forging ratio increases, it fails to make up for the defects of the smelting.

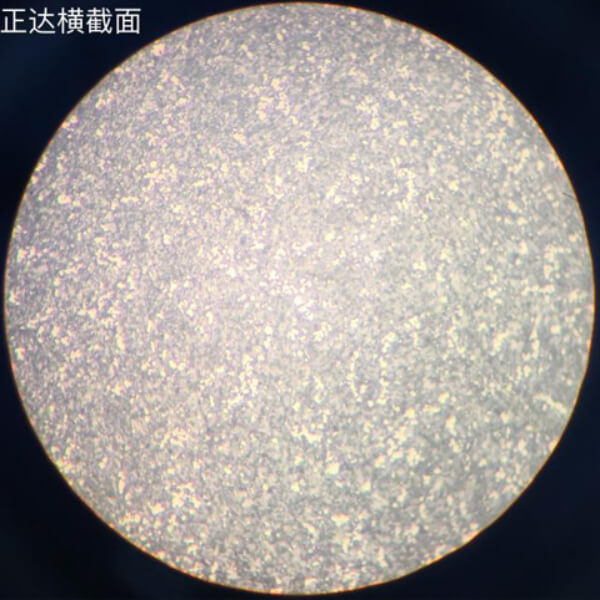

Photo3(ZhengDa=Zeicin) the modification of three technological processes of 1) EAF +LF+VD, 2) Special innovation smelting process of RS ESR, 3) transformation forging of the 9Cr18Mo , So that keep obviously better than the imported ones.The carbide is small and uniform.

SUS440C 조직 분석 Microstructure comparision

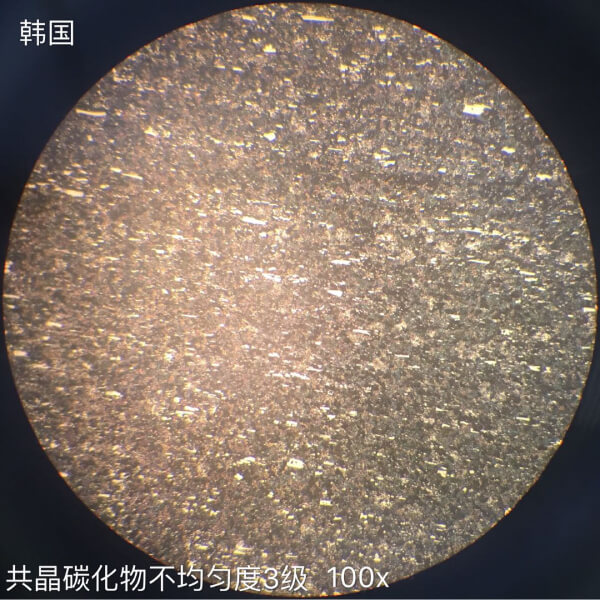

Korea SUS440C dia20mm 100times

carbide size:62μm

carbide distribution:3 한국

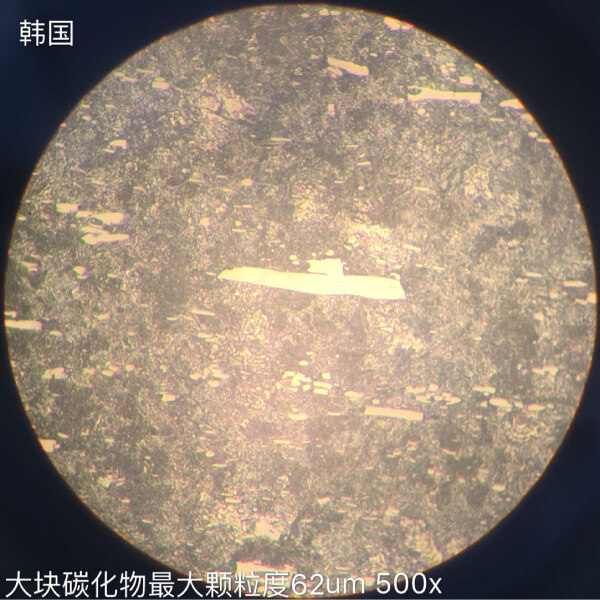

Korea SUS440C dia20mm 500times

carbide size:62μm

carbide distribution:3 한국

Japan SUS440C dia20mm 100times

carbide size:32μm

carbide distribution:1.5 일본

Japan SUS440C dia20mm 500times

carbide size:32μm

carbide distribution:1.5 일본

Zeicin SUS440C dia20mm 100times

carbide size:12μm

carbide distribution:2 정다몰드

Zeicin SUS440C dia20mm 500times

carbide size:12μm

carbide distribution:2 정다몰드

VG-10 조직 분석 Microstructure comparision

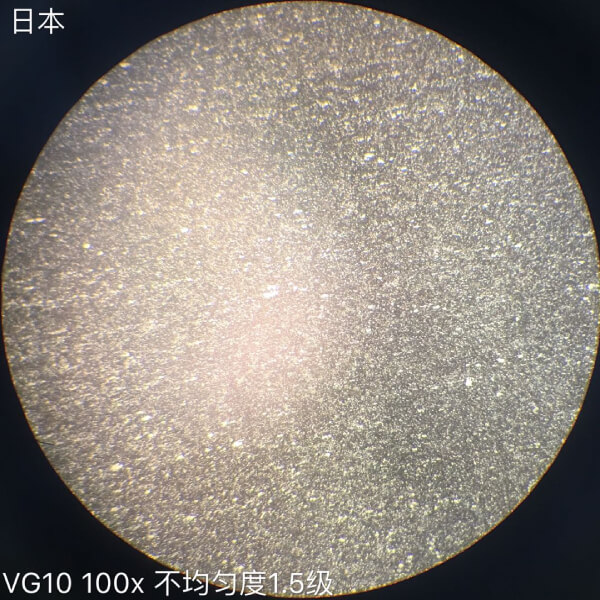

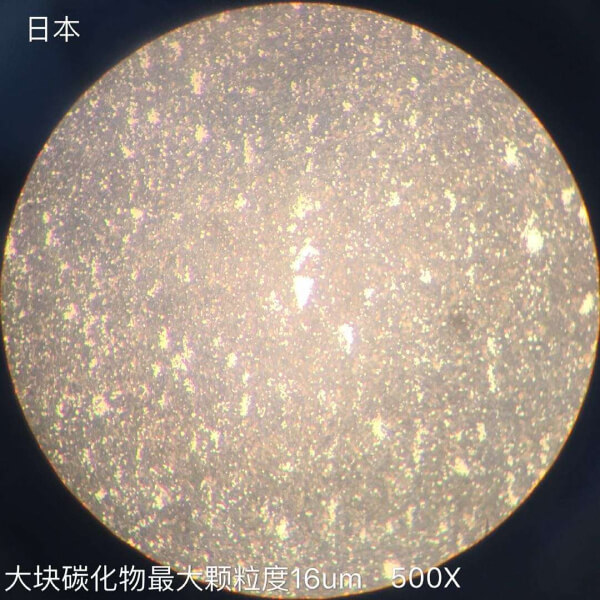

Japan VG-10 dia22mm 100times

carbide size:16μm

carbide distribution:1 일본

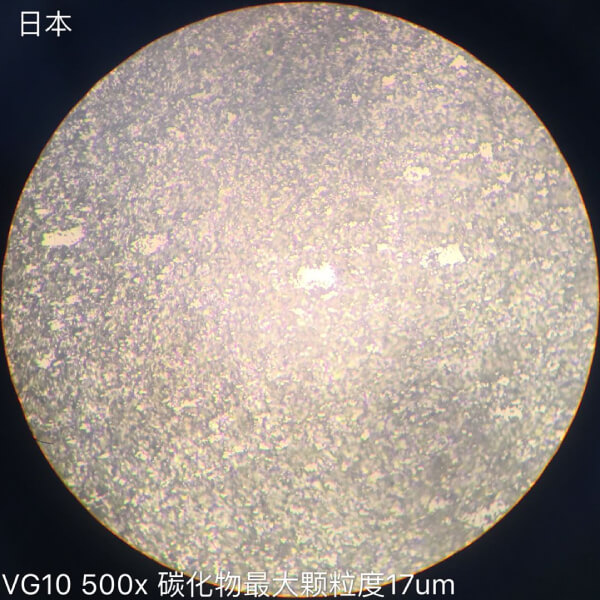

Japan VG-10 dia22mm 500times

carbide size:16μm

carbide distribution:1 일본

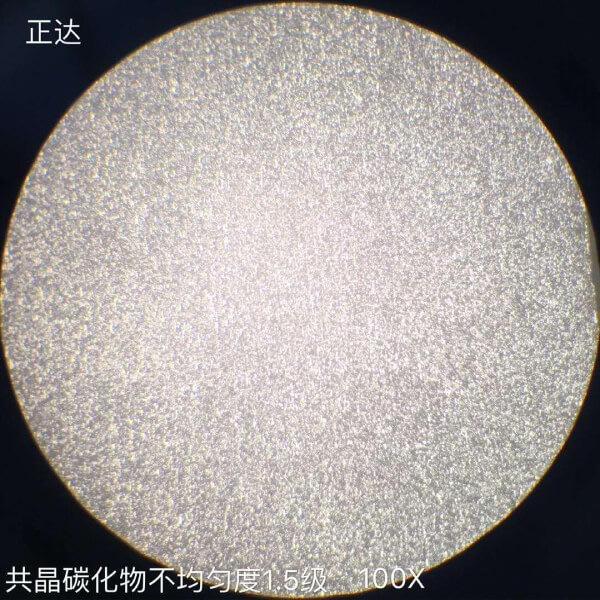

Zeicin VG-10 dia22mm 100times

carbide size:13μm

carbide distribution:1.5 정다몰드

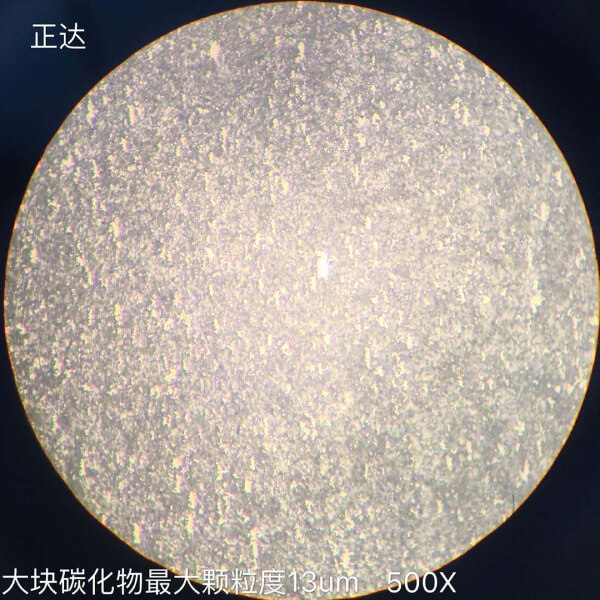

Zeicin VG-10 dia22mm 500times

carbide size:13μm

carbide distribution:1.5 정다몰드

Takefu 440C

dia3.3X105XLmm 100times

carbide size:17μm

carbide distribution:1.5

Takefu 440C

dia3.3X105XLmm 500times

carbide size:17μm

carbide distribution:1.5

Zhengda=Zeicin VG-10

dia3.3X160XLmm 100times

arbide size:13μm

carbide distribution:1.5

Zhengda=Zeicin VG-10

dia3.3X105XLmm 500times

carbide size:13μm

carbide distribution:1.5

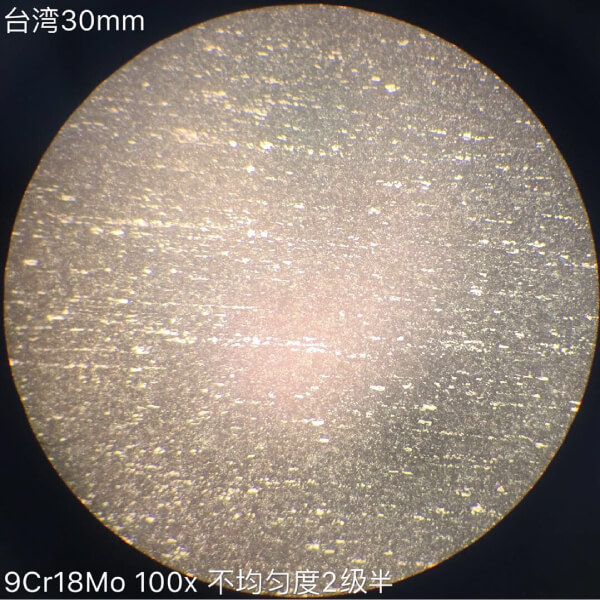

Gloria 440C

dia30mm 100times

carbide size:32μm

carbide distribution:2 .5

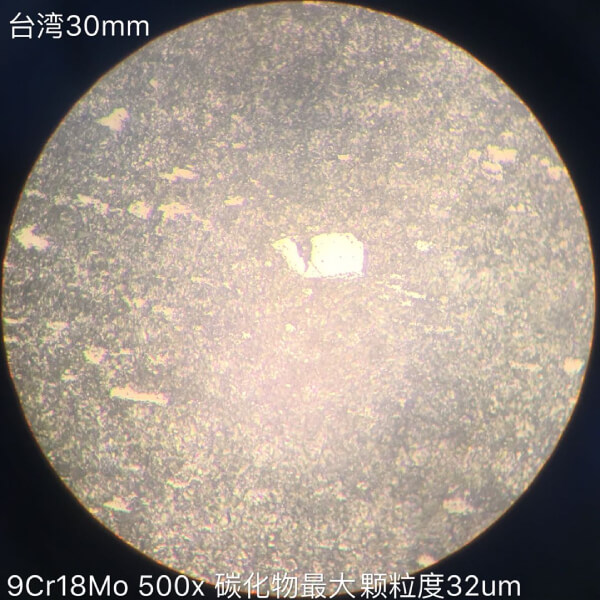

Gloria 440C

dia30mm 500times

carbide size:32μm

carbide distribution:2 .5

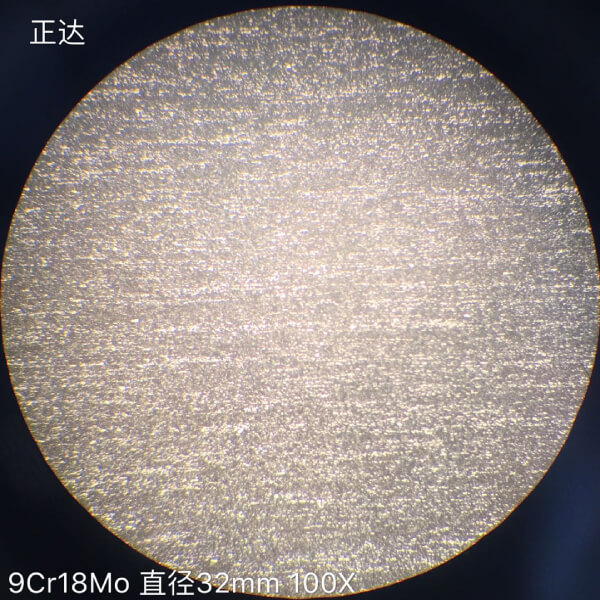

Zhengda=Zeicin 440C

dia32mm 100times

carbide size:14μm

carbide distribution:2

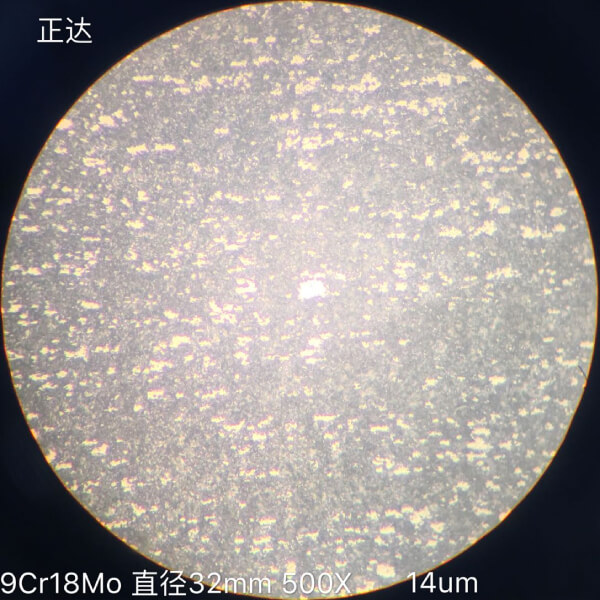

Zhengda=Zeicin 440C

dia32mm 500times

carbide size:14μm

carbide distribution:2

Martensite stainless steel: 마르텐사이트 스테인레스

The advantages of choosing 9Cr14MoV+Co:

1) It is not easy to break when it is used for warping bending shear;

2) The matrix strength is higher;

3) The toughness is better

M2

dia35mm 100times microstructure

carbide grain size:8 μm

carbide distribution:2

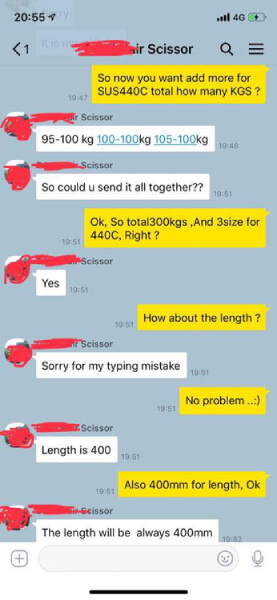

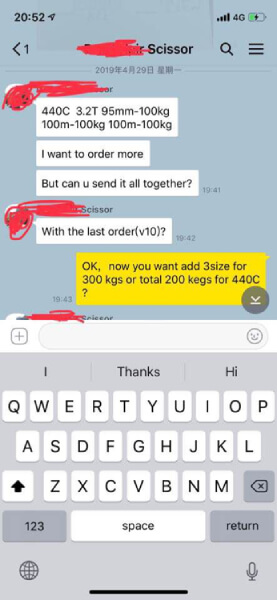

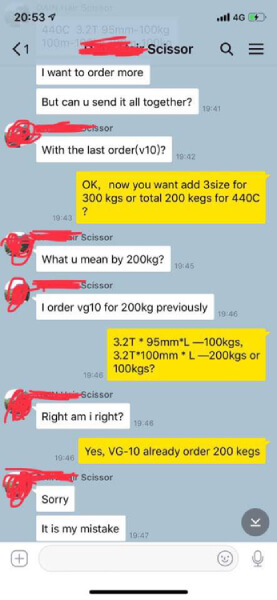

Customer Feedback

This is one of our Korea custoers who purchase Japan before, but now he would like to purchase from us for the SUS440C and VG10.
