DIN 1.4116 (DIN 1.4116) is a bearing steel used to make ball bearings, rollers and bearing rings. Bearing steel has high and uniform hardness and wear resistance, as well as high elastic limit.

SKU: 5Cr15MoV   W1.4116   X45CrMoV15  Category:
  1. General Details

    5Cr15MoV   W1.4116   X45CrMoV15   Stainless Steel



    4116 (full name DIN 1.4116) is a kind of bearing steel, the biggest characteristic is corrosion and wear resistance, chromium and vanadium content is very high, so the price is not low (mainly vanadium cost), but as a cutting tool will not be very good polishing and blade if the hardness is low is better

    Similar Grade

    execution standardZEICIN GradeGBAISIJISDIN
    GB5Cr15MoV5Cr15MoV N/A N/AW1.4116 (X45CrMoV15)

    Main chemical composition %

    CCrMnSiMoV
    0.45-0.5513.80~15.00≤1.00≤1.000.5-0.80.1-0.2
    CoSPNiNbW
    ≤0.015≤0.04

    Product details

    #NameSpecification
    1Steel grade5Cr15MoV   W1.4116   X45CrMoV15   Stainless Steel
    2SizeT:2.0mm above; W:250mm below(according to order)
    3Toleranceaccording to order

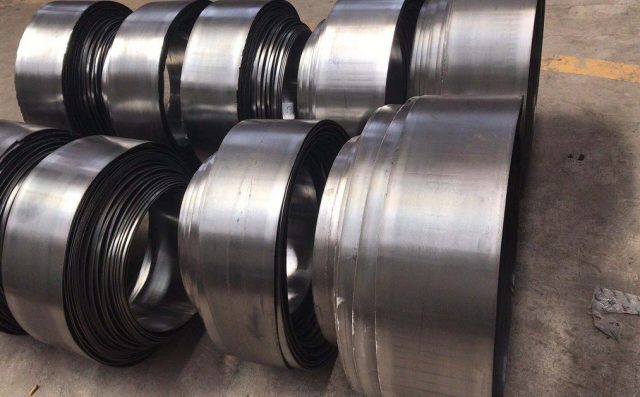

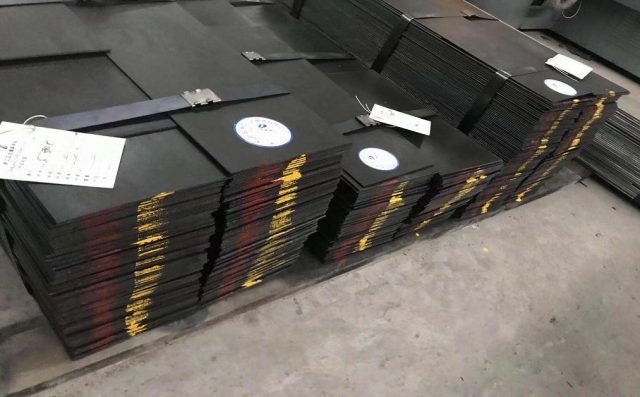

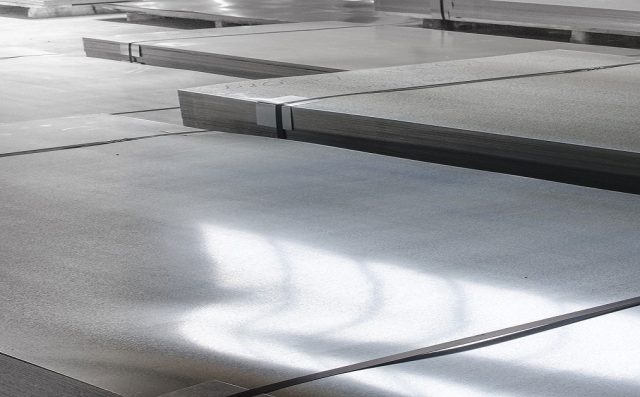

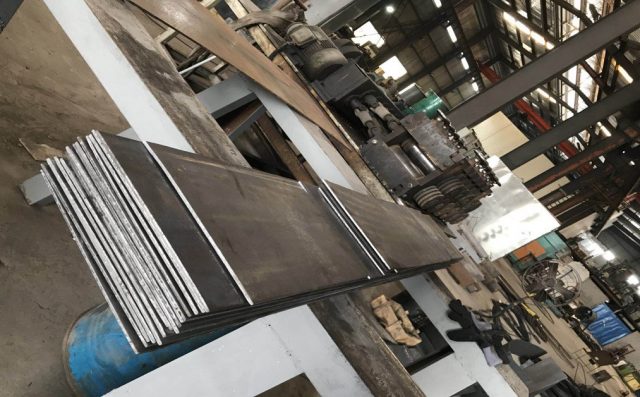

    4TechniqueThickness: 2.0-3.0mm Cold Rolled/ Thickness:3.0mm above Hot Rolled
    5SurfaceAnnealing
    6Applicationchef knife/ Kitchen knife/Army knife/outdoor knife/forged knife/Scissors/Haircut scissors/pet scissors/

    bearing ring and rolling element/non-rust cutting machine tool /shearing tool/ surgical blade /parts of high wear-resisting equipment /etc.

  2. Download

    download the specification for 1.4117 Stainless Steel of ZEICIN

    download - 5Cr15MoV   W1.4116   X45CrMoV15   Stainless Steel
