  1. General Details

    A8 5Cr5WMoVSi Cold work mold steel, alloy steel, tool steel

    A8 is Alloy forging die steel, its characteristic is:1. High hardenability, the high degree of dimensional stability in heat treatment;2.Good wear resistance, fatigue life;3.Toughness, and deep hardening qualities.

    Similar Grade

    Execution standardZEICIN GradeGBAISIDINASSABJIS/ DAIDO
    GB/T 119.2-2000A85Cr5WMoVSiA8

    Main chemical composition %

    CCrMnSiMoV
    0.50-0.604.75-5.500.20-0.500.75-1.101.15-1.65
    CoSPNiNbW
    ≤0.030≤0.0301.10-1.50

    Size

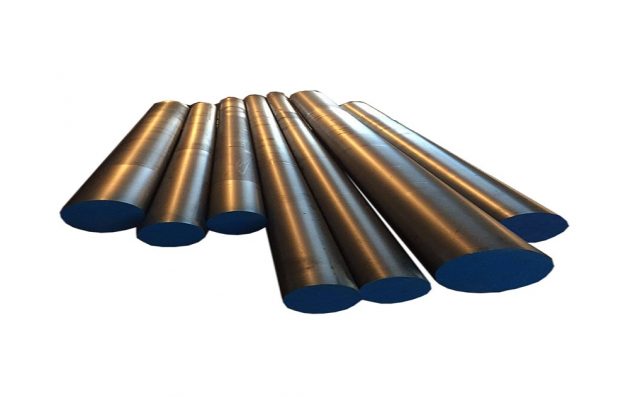

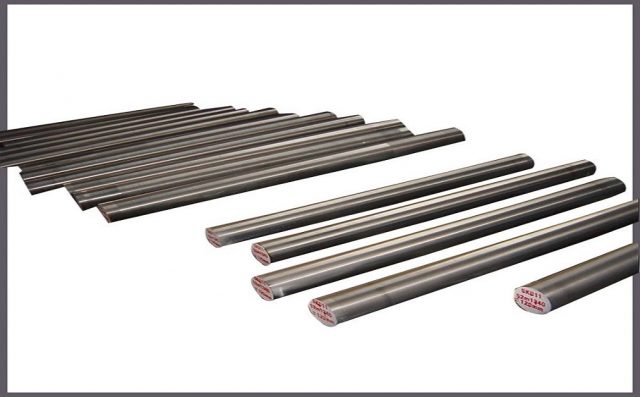

    Round BarDiameter(mm)Hot Forged: φ50-500Length(mm):2000-5800
    Hot Rolled:≤50Length(mm):2000-5800

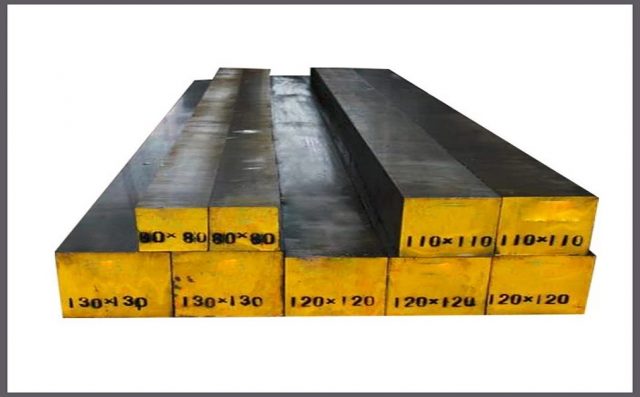

    Steel PlateThickness(mm)Hot Forged:≥20Width(mm):200-810
    ≤0.030Hot Rolled:≤20Width(mm):200-810

    Product details

    #NameSpecification
    1Steel gradeA8/5Cr5WMoVSi
    2Toleranceaccording to order
    3TechniqueElectric furnace melted, forged and annealed, round bar turned, flat bar machined.
    4SurfaceBlack/Grinded/Machined/Turned
    5ApplicationPrecision stamping mold; Plastic deformation tools of difficult-to-machine materials; High-speed punching punch, stainless steel punch. Cold forming, blanking and bending dies, forming rolls, drill bushings, knurling tools, master dies and gages.
