W18Cr4V is an omni-directional steel that can be used for cutting when hot and hard requirements are not the most important. W18Cr4V is also suitable for cold service; Examples are tools used for punching, forming, stamping, and other purposes.

SKU: T1 W18Cr4V1 SKH2 1.3355 High Speed Steel Category:
  1. General Details

    T1 W18Cr4V1 SKH2 1.3355 High-Speed Steel

    W18Cr4v, one of the commonly used tungsten high-speed steels, belongs to lactic steel, which is the longest-used type of high-speed steel. Like other high-speed steels, they are often referred to as “white steel”, “front steel” or “wind steel” (which can be quenched by air cooling).

    Similar Grade

    Execution StandardZEICIN GradeGBAISIJISDIN
    GB/T9943-2008T1W18Cr4V1T1SKH21.3355

    Main Chemical Composition%

    CWMoCrVCoAlMnSiSP
    0.70-0.8017.50-19.00≤0.33.80-4.401.00-1.400.15-0.400.15-0.40≤0.03≤0.03

    Size

    • Round Bar/mm
    TypeSpecification(mm)Surface Condition
    Cold-drawn Round Steelφ2-10Black
    Hot-rolled Round Steelφ11-75Turned
    Precision Forging Round Steelφ80-120Turned
    • Specification for Hot-rolled flat bar in common use/mm (black surface)
    TW202530405060708090100
    3
    4~5
    6~13
    14
    15~18
    19
    20

    More Information

    Technology process:EAF+LF+VD+RS ESR, Unique technology of rapid solidification electro slag smelting, which can greatly improve the performance of the internal organization of high-speed steel, ledeburite meshes smaller and thinner, can make material high toughness, high wear resistance.
    PropertyW18Cr4V is of high-speed tool steel, tungsten has high hardness and red hardness and high-temperature strength and hardness at 500 ℃ and 600 ℃ respectively remain in HRC57-58 and HRC52 -53, in addition, also has good high-temperature strength and wear resistance, the heat treatment temperature range-wide, quenching is not easy to overheating, easy grinding, hot working, and heat treatment process is not easy to oxidation decarburization. Good cutting performance for generally processed materials.
    ApplicationSuitable for cutting tools such as paper-knife, twist anchor, broach, tapping, milling, cutting, reamer, and others. In terms of performance, the W18Cr4V is Omni-directional steel that can be used for cutting when hot and hard requirements are not the most important. W18Cr4V is also suitable for cold service; Examples are tools used for punching, forming, stamping, and other purposes.

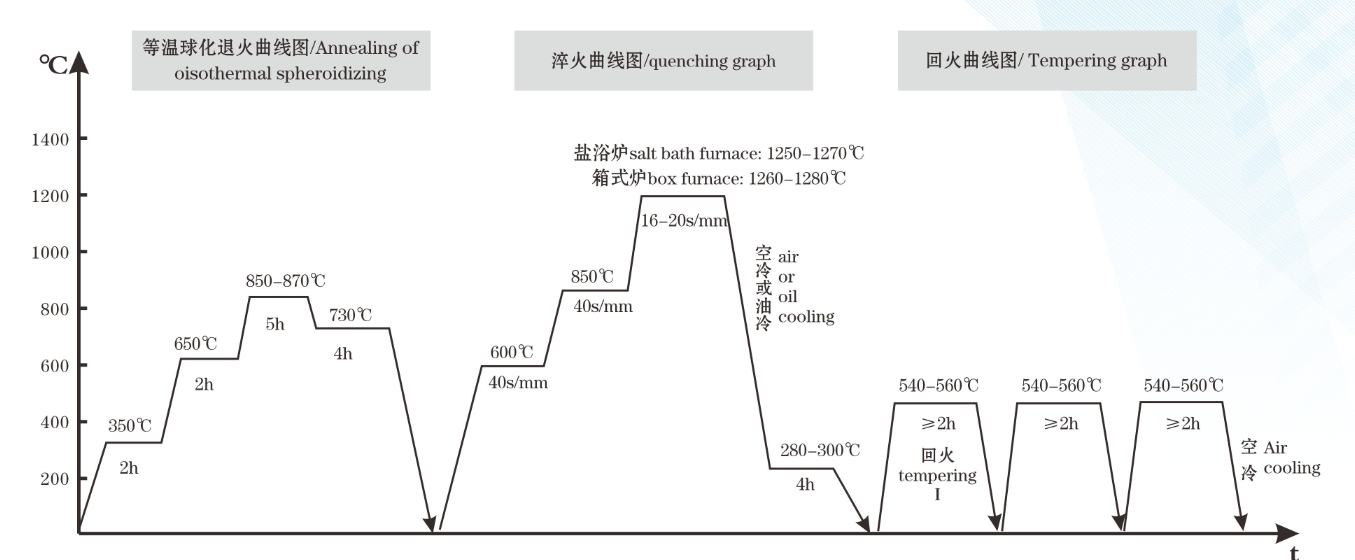

    %E7%83%AD%E5%A4%84%E7%90%86%E5%B7%A5%E8%89%BA%E6%9B%B2%E7%BA%BF 1 1024x558 - T1 W18Cr4V1 SKH2 1.3355 High Speed Steel

    Microstructure

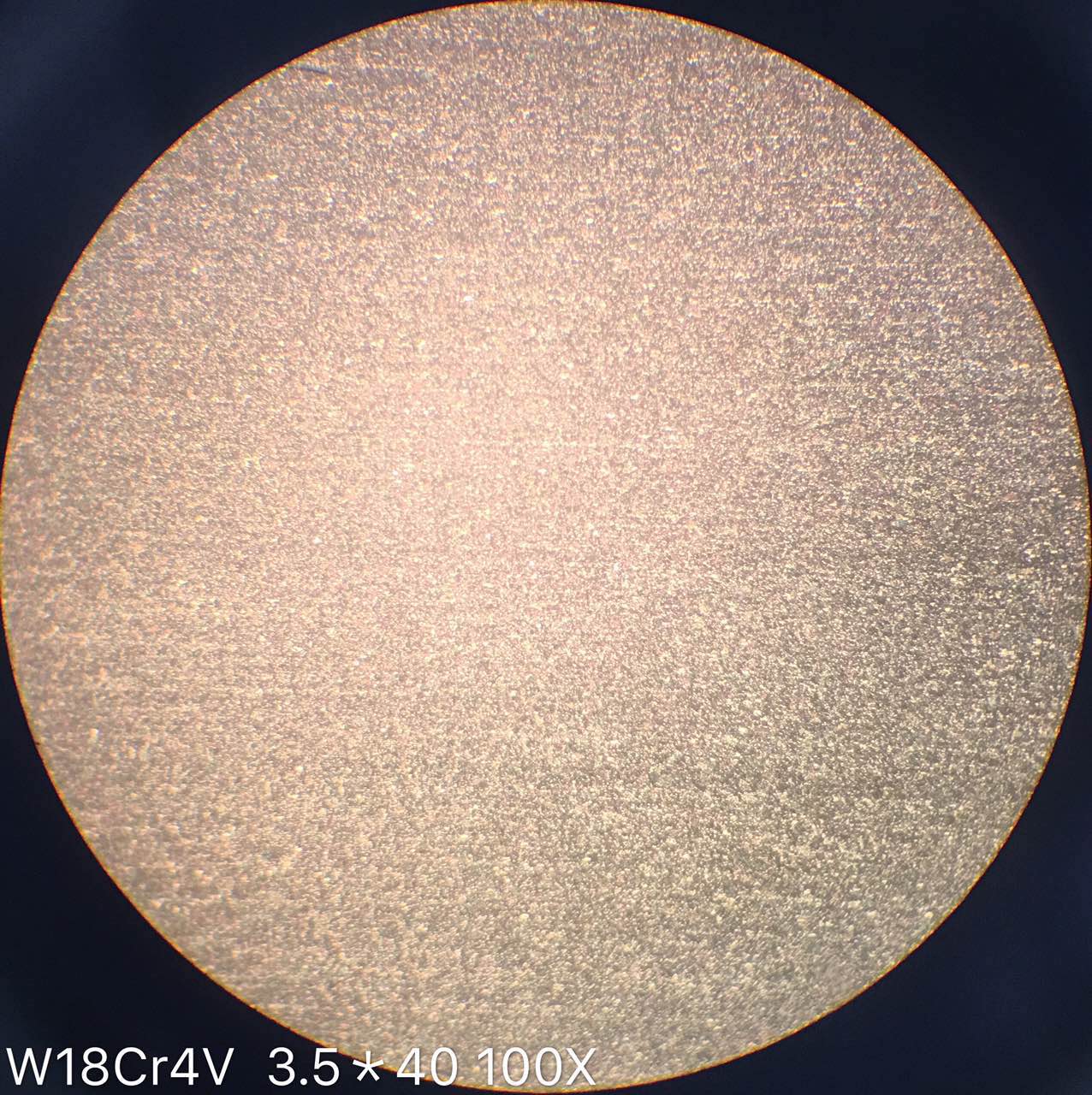

    microstructure T1 100times 1021x1024 - T1 W18Cr4V1 SKH2 1.3355 High Speed Steel

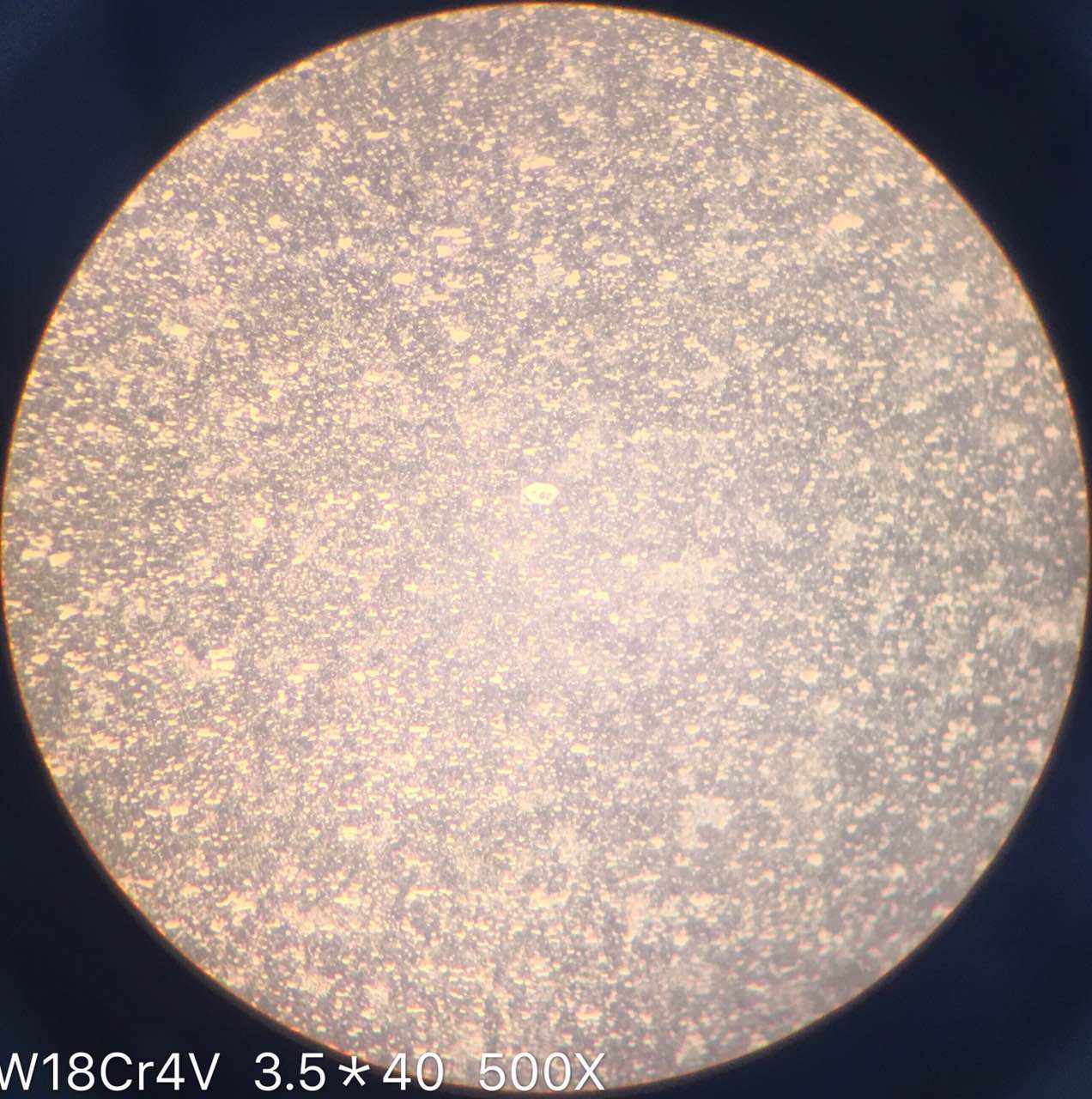

    microstructure T1 500times 1018x1024 - T1 W18Cr4V1 SKH2 1.3355 High Speed Steel

    Surface condition

    surface 1 - T1 W18Cr4V1 SKH2 1.3355 High Speed Steel
